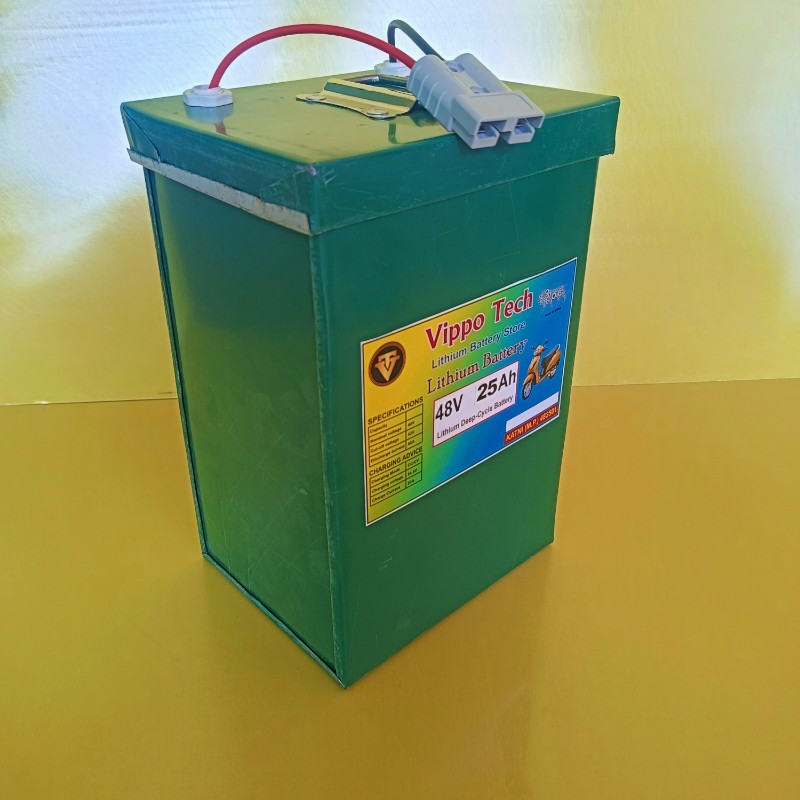

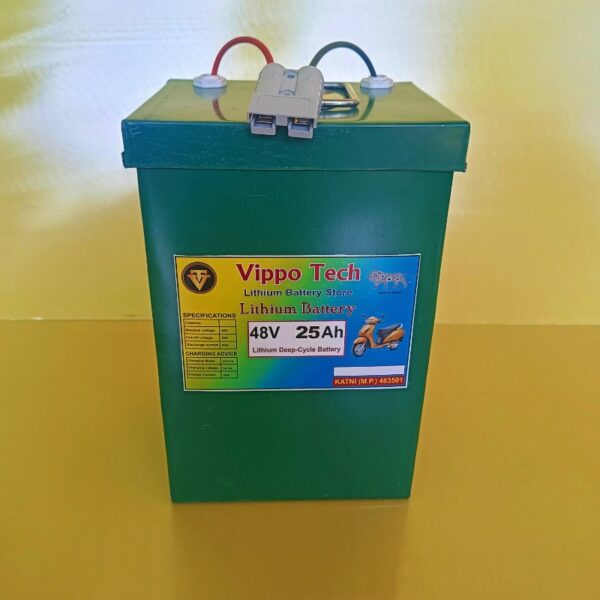

51V 25Ah LITHIUM-ION RECHARGEABLE BATTERY (14s)

₹16,499.00

Voltage: 51.8V (Nominal)
Capacity: 25Ah
Configuration: 14S 5P (14 cells in series and 5 cells in parallel)
High Energy Density
Long Cycle Life
Stable Voltage Output
Lightweight and Compact
Low Self-Discharge Rate
Fast Charging Capability
Cell Type: Cylindrical 26650
Charging Voltage: Approximately 58.8V (4.2V per cell)
Discharge Cut-off Voltage: Approximately 42V (3.0V per cell)
Operating Temperature Range: -20°C to 60°C
Package Includes:
- 1 x LI-ION 51.8V 25AH Battery

Description

Specifications

Battery Chemistry	NMC (Nickel Manganese Cobalt)
Battery Case	Metal
Cell Type/Assembly Method	Cylindrical cells/welded
Voltage (V)	51.8V
Capacity (Ah)	25Ah
Energy Stored (Wh)	1290 Watt-Hours
Weight	8.2 kg
Dimension (L x W x H)	181522

Cycle Life	1100+ cycles
Discharge Connector	SB50
Charge Connector	PP45 Anderson
Normal Charged Voltage	58.8V
Normal Charge Current	10 Amps
Normal Battery Cutoff Voltage	42V
Nominal Continuous Discharge Current	40.0 Amps
Maximum Continuous Discharge Current	40.0 Amps
Maximum Peak Discharge Current	80.0 Amps (2 Seconds)
Charge Temperature	0°C to 45°C
Discharge Temperature	-20°C to 60°C
Operating Humidity	60±20%R.H
Storage Humidity	60±20%R.H
Automatic Battery Protection Module/System	Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Cell Balancing

Weight	8200 g
Dimensions	18 × 15 × 22 cm
