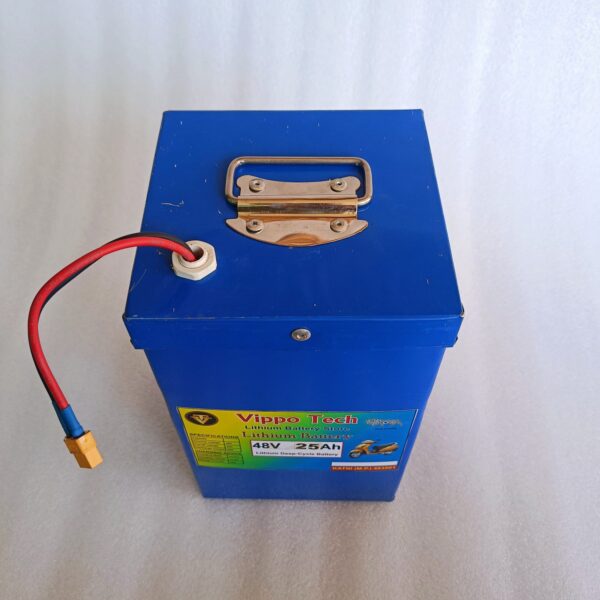

48V 25Ah LITHIUM-ION BATTERY (13s)

₹15,499.00

Voltage: 48V (Nominal)
Capacity: 25Ah
Configuration: 13S 5P (13 cells in series and 5 cells in parallel)
High Energy Density
Long Cycle Life
Stable Voltage Output
Lightweight and Compact
Low Self-Discharge Rate
Fast Charging Capability
Cell Type: Cylindrical 26650
Charging Voltage: Approximately 54.6V (4.2V per cell)
Discharge Cut-off Voltage: Approximately 39V (3.0V per cell)
Operating Temperature Range: -20°C to 60°C
Package Includes:
- 1 x LI-ION 48V 25AH Battery

Description

Specifications

Battery Chemistry	NMC (Nickel Manganese Cobalt)
Battery Case	Metal
Cell Type/Assembly Method	Cylindrical cells/welded
Voltage (V)	48V
Capacity (Ah)	25Ah
Energy Stored (Wh)	1200 Watt-Hours
Weight	7.6 kg
Dimension (L x W x H)	181522

Cycle Life	1100+ cycles
Discharge Connector	SB50
Charge Connector	PP45 Anderson
Normal Charged Voltage	54.6V
Normal Charge Current	10 Amps
Normal Battery Cutoff Voltage	39V
Nominal Continuous Discharge Current	40.0 Amps
Maximum Continuous Discharge Current	40.0 Amps
Maximum Peak Discharge Current	80.0 Amps (2 Seconds)
Charge Temperature	0°C to 45°C
Discharge Temperature	-20°C to 60°C
Operating Humidity	60±20%R.H
Storage Humidity	60±20%R.H
Automatic Battery Protection Module/System	Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Cell Balancing

Weight	7600 g
Dimensions	18 × 15 × 22 cm
