Description

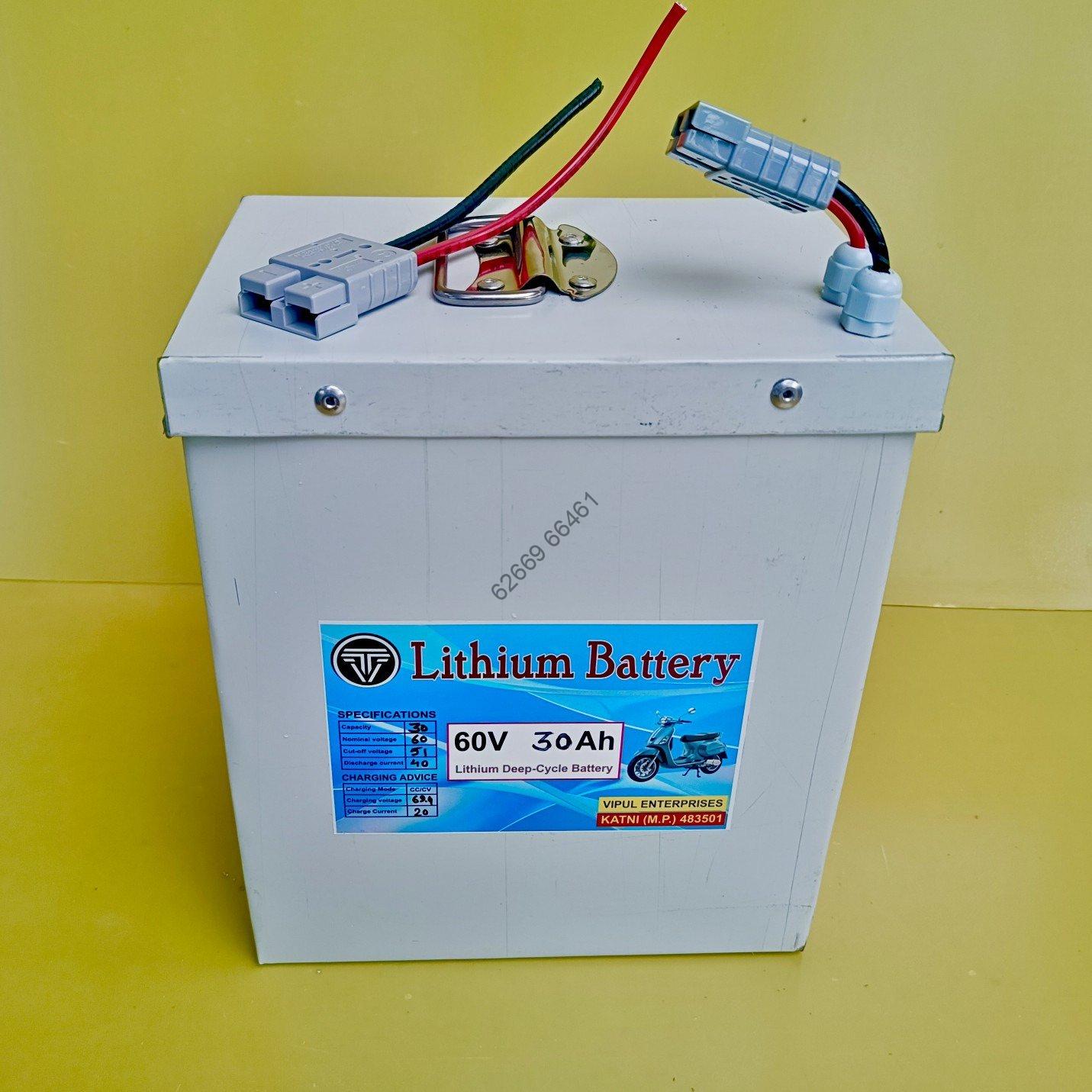

Specifications
| Battery Chemistry | LIFEPO4 |
|---|---|
| Battery Case | Metal |
| Cell Type/Assembly Method | Cylindrical cells/welded |
| Voltage (V) | 60V |
| Capacity (Ah) | 30Ah |
| Energy Stored (Wh) | 1800 |

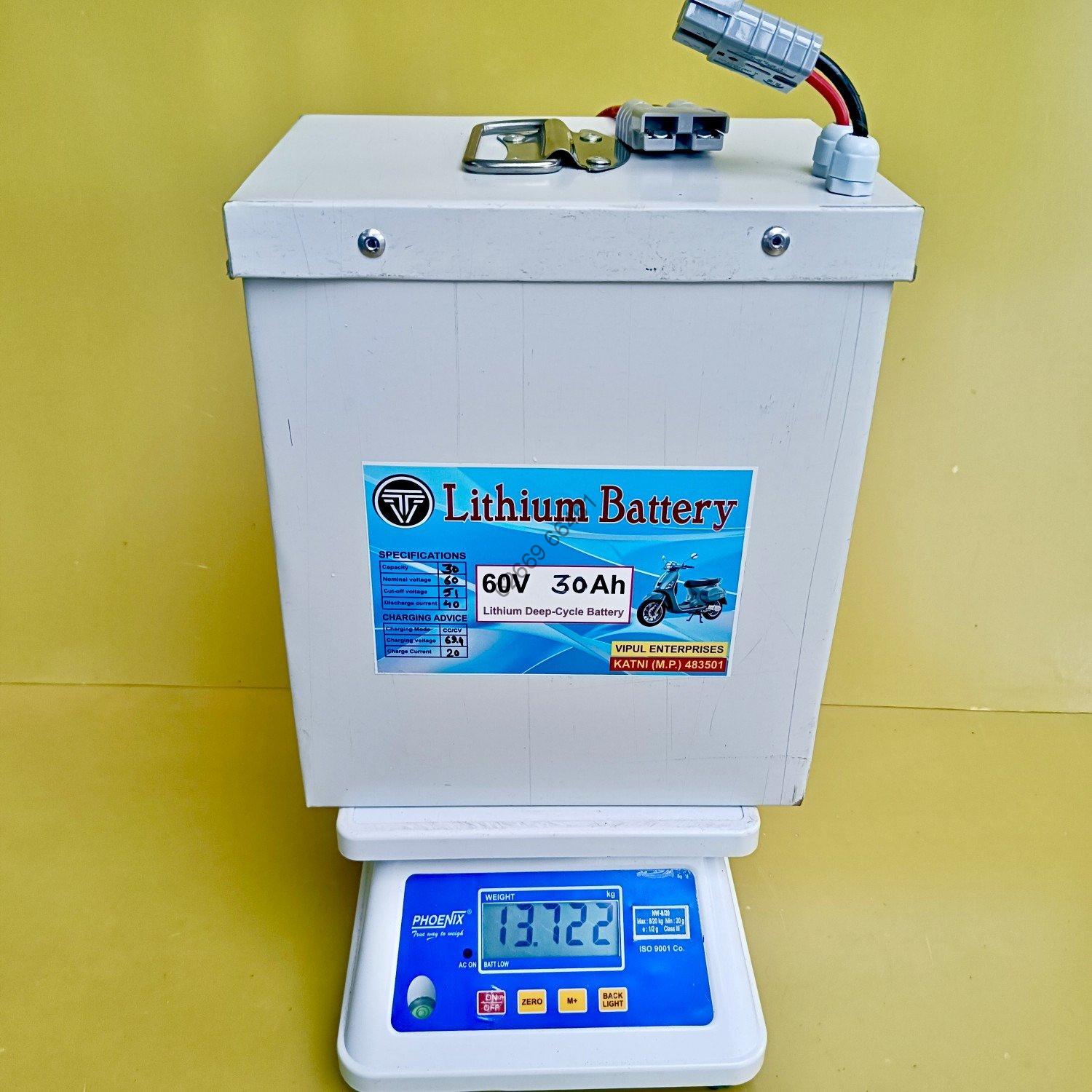

| Weight | 13500 |
| Dimension (L x W x H)cm | 23*15*28 |
| Cycle Life | 2000+ cycles |
| Discharge Connector | SB50 |
| Charge Connector | PP45 Anderson |
| Normal Charged Voltage | 69.4V |
| Normal Charge Current | 6-15 Amps |
| Normal Battery Cutoff Voltage | 52V |
| Nominal Continuous Discharge Current | 40.0 Amps |
| Maximum Continuous Discharge Current | 40.0 Amps |
| Maximum Peak Discharge Current | 80.0 Amps (2 Seconds) |
| Charge Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 60°C |
| Operating Humidity | 60±20%R.H |
| Storage Humidity | 60±20%R.H |
| Automatic Battery Protection Module/System | Low Voltage Disconnect, Over Voltage Disconnect, Short Circuit Protection, Cell Balancing |
