4 Channel 5V 50A Charge Discharge Capacity Tester High Precision YPSDZ

Description

YPSDZ high precision 4 channel 5V 50A charge discharge detector battery pack voltage balance lithium battery capacity tester

• Hign-concerned Chemical

  None
  Model Number

  YPSDZ-0550-4
• DIY Supplies

  Electrical
  Brand Name

  ZJMZYM
• Origin

  Mainland China
  Product number

  FC4478
• Product name

  4-channel 50A Battery Capacity Tester
  Voltage

  220V / 110V (optional)
• Power

  Chinese/English
  Channels

  4 channels isolated and independent work
• Charging range

  1-5V adjustable, 0.5-50A adjustable
  Discharge range

  1-5V adjustable, 0.5-50A adjustable

Name: 4-channel 50A Battery Capacity Tester

Voltage: 220V / 110V (optional)

Power: 1000W

Model: YPSDZ-0550-4

Menu: Chinese/English

Channels: 4 channels isolated and independent work

Charging range: 1-5V adjustable, 0.5-50A adjustable, constant current – constant voltage

Discharge range: 1-5V adjustable, 0.5-50A adjustable, constant current discharge (no spike pulse)

Work step: charge/discharge/cycle 1-5 times

Net weight: 6.4kg

Size: 620*105*230mm

Package Included:

Battery Capacity Tester*1pc

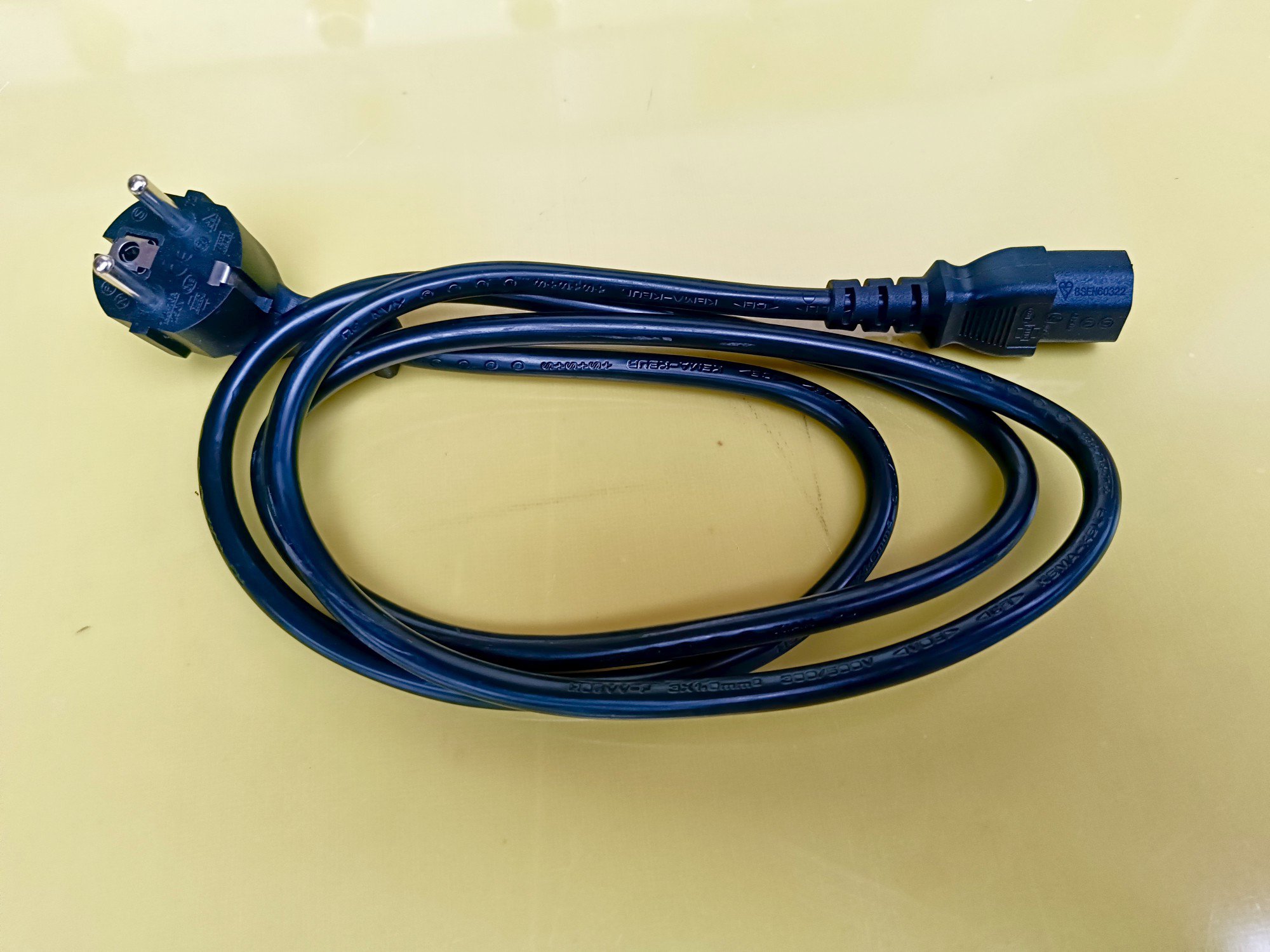

Power Adapter*1pc

Manual*1pc

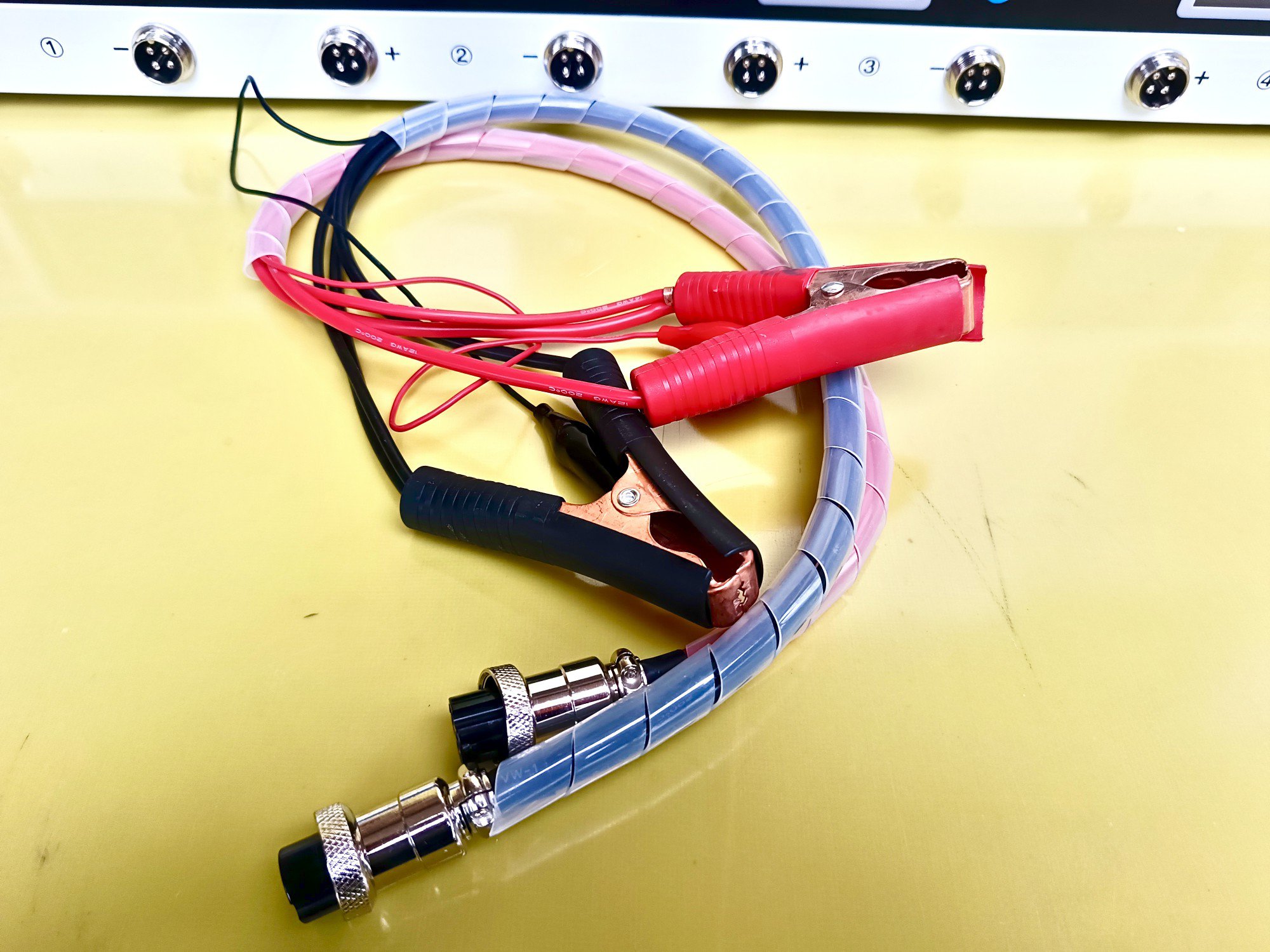

Clamp*4pcs (Gift)

Extended functions:

4 channels can work in parallel after the same parameter setting,

realizing 200A charging and discharging.

Any 4 cells in a series battery pack can be tested without removing the connecting tabs.

Auxiliary function: equalization mode (discharge equalization)

Protection function: battery over-voltage / battery reverse

/ battery disconnection / high temperature alarm and protection

Accuracy: Voltage ±0.2% Current ±0.2% Allows calibration by authorized users

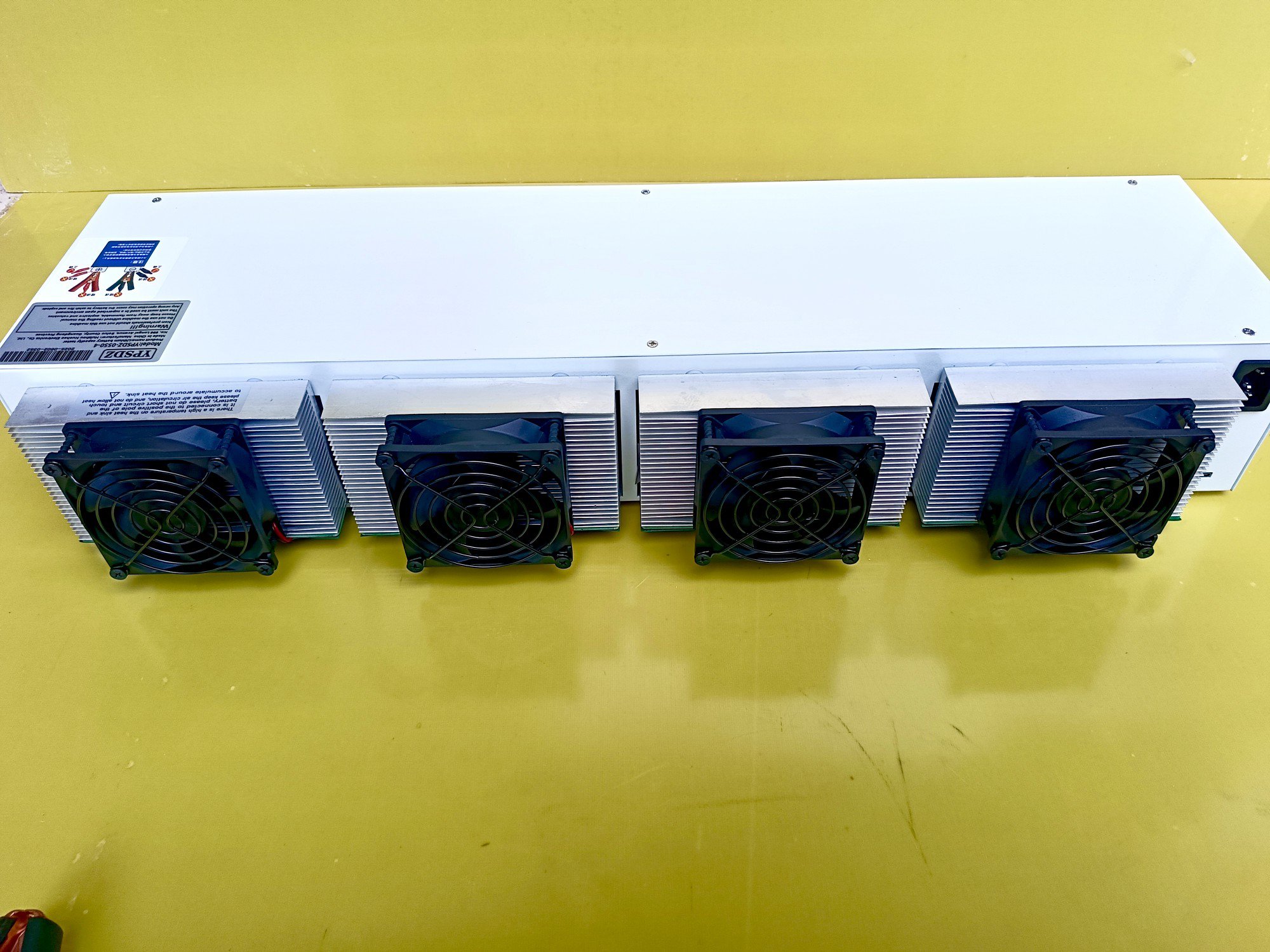

Heat dissipation: temperature-controlled fan 40 ℃ open, 83 ℃ protection

(please check and maintain the fan operation regularly)

Working environment: 0-40 ℃ ventilation, do not let the heat accumulated around the radiator,

if necessary, can be used to increase the air flow of electric fans blowing against the radiator

Applications:

It can be used for single cell dividing or battery pack rapid equalization;

Suitable for lithium ternary, lithium iron phosphate,

manganese/cobalt/lithium titanate polymer batteries
