Description
Overview

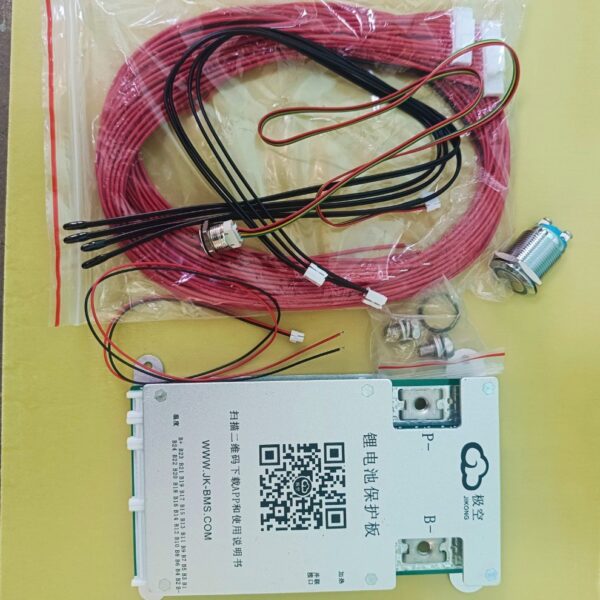

A lithium battery smart BMS, designed for big capacity series lithium battery packs, is a management system that provides a range of features, including voltage collection, active large current balancing, overcharge, overcurrent, overtemperature protection, Coulombmeter, Bluetooth connectivity, GPS remote, and more. Our BD6A24S12P Active Balancer BMS offers a range of benefits, including high current active balancing technology, maximum battery consistency, longer battery life, and delayed battery aging.
Active Balancing Technology
Our proprietary technology is used in the BD6A24S12P Active Balancer BMS for active balancing, which enables a range of benefits. With maximum battery consistency, you can be confident that your battery will perform at its best, providing you with dependable power when you need it. Longer battery life is also possible thanks to our advanced technology, which helps to delay battery aging.
Mobile App Compatibility

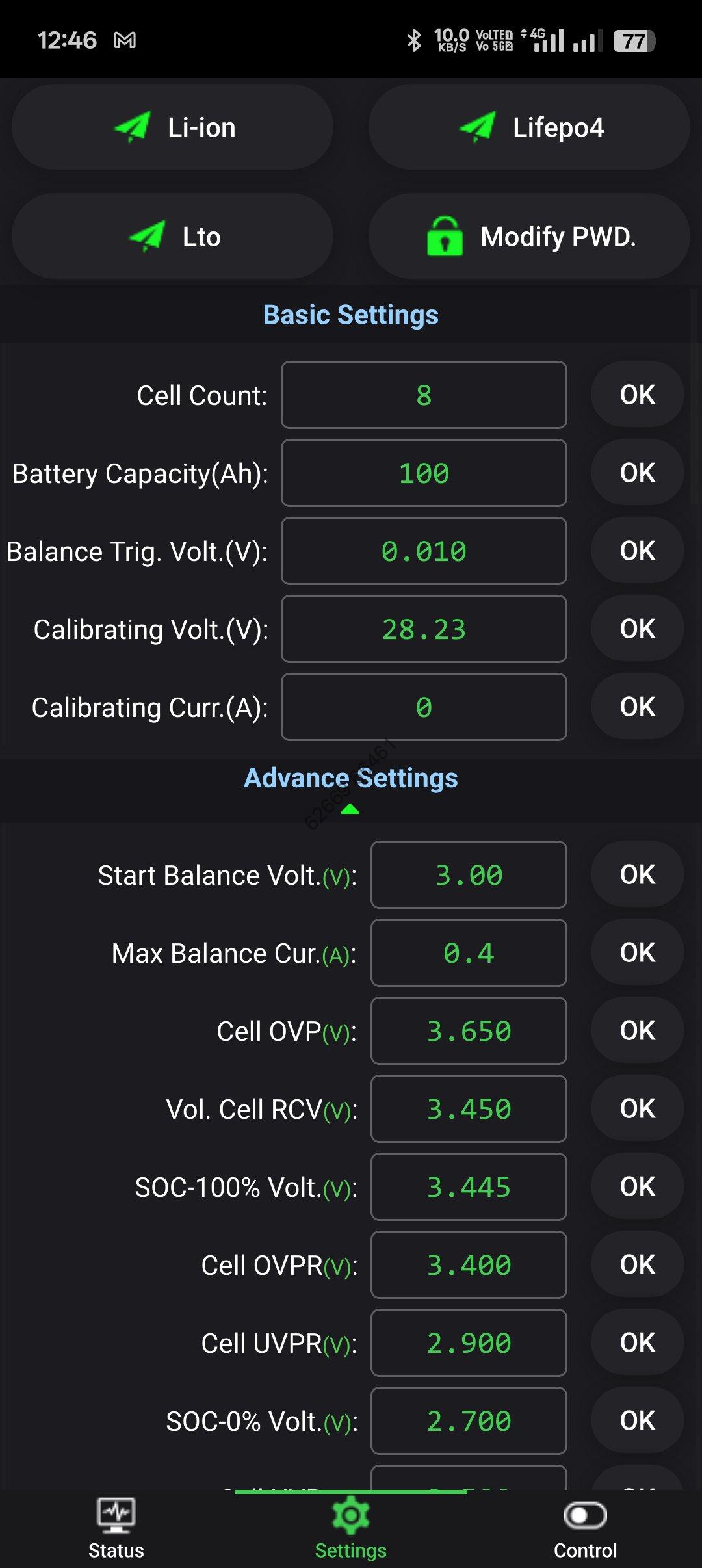

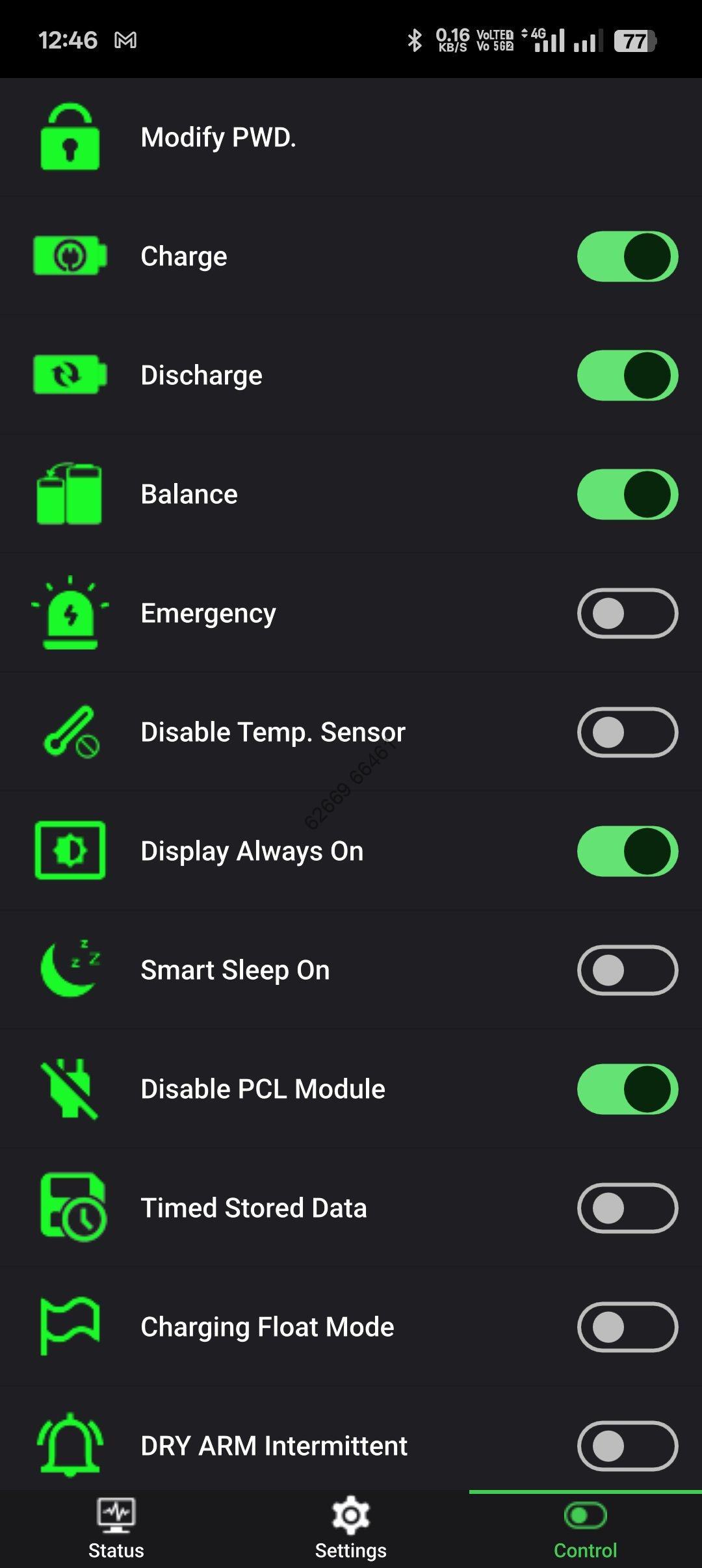

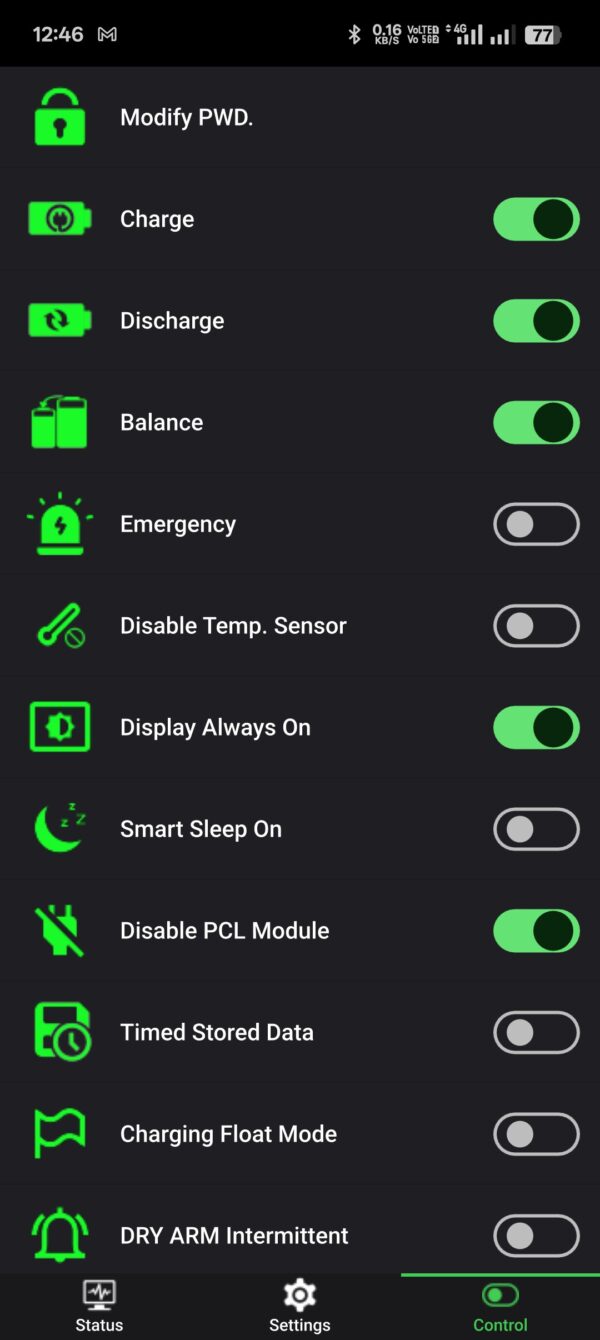

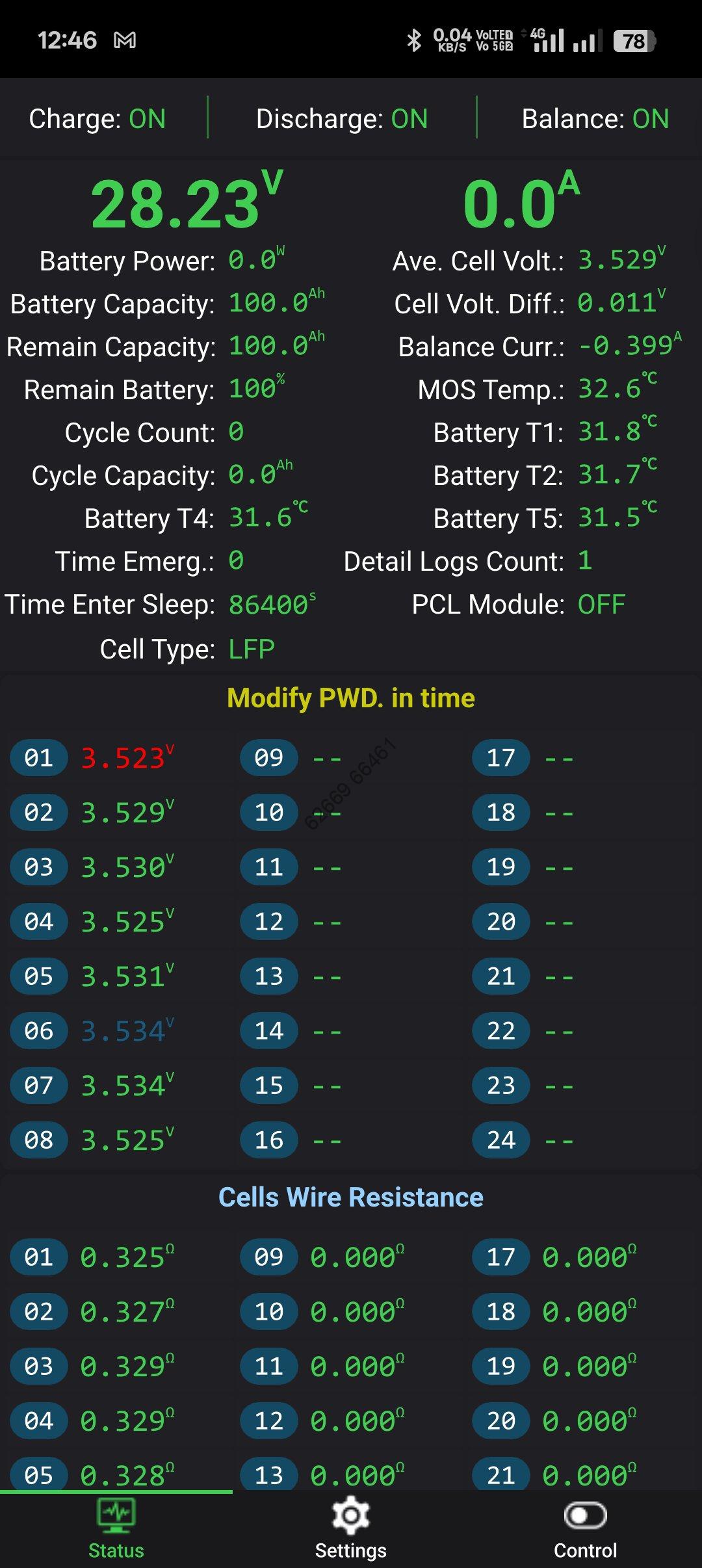

The BD6A24S12P Active Balancer BMS features a companion mobile app that works with iOS and Android versions 7 and higher. The mobile app provides Bluetooth connectivity, allowing you to operate the charging and discharging switches, check the battery’s operational state, and make changes to the BMS’s operating settings. Small in size, easy to use, and packed with features, the BD6A24S12P Active Balancer BMS is ideal for a range of products, including solar power stations, walkers, shared cars, high-power storage, base station backup power, and tiny sightseeing automobiles.
Technical Specifications
The BD6A24S12P Active Balancer BMS has a working voltage of 20~100V, making it suitable for a range of applications. With advanced features and cutting-edge technology, the BD6A24S12P Active Balancer BMS is the ideal choice for those looking for a high-quality lithium battery management system.
Technical Specifications
- Model: JK-BD6A24S12P
- Working voltage: 20~100V
- Main specifications:
| Li-ion | 7S~24S |
| Lifepo4 | 8S-24S |
| LTO | 12S~24S |
| Balance way | Active Balance |
| Active balance current | 0.6A |
| MOSFET | 0.65mΩ |
| Continuous discharge current | 120A |
| Peak discharge current | 250A |
| Over current protection | 10A-120A adjustable |
| out cableway | same port |
| single cell voltage scale | 1-5V |
| Voltage accuracy | ±3mV |
| Over charge protection voltage | 1.2V-4.35V adjustable |
| Over charge protection release | 1.2V-4.55V adjustable |
| Over current protection release time | 2S-120S adjustable |
| Over discharge protection voltage | 1.2V-4.35V adjustable |
| Over discharge protection release | 1.2V-4.35V adjustable |
| Temp sensor quantity | 3 |
| Short circuit protection | YES |
| BT function | Support Android and IOS |
| GPS remote control | Support |
| Other communication port | RS485/CAN (customize) |
| Size | 162*102*20mm |
